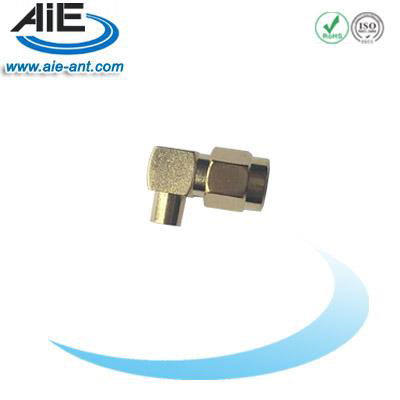

SMA right angle male Connector

Model No.︰AIE-SMAWM-402
Brand Name︰AIE
Country of Origin︰China
Unit Price︰US $ 0.16 / pcs
Minimum Order︰10 pcs
Share on:

 Total 19 Related Items
Prev89101112Next

Product Description

Model                AIE-SMAWM-402

Major Technical Characteristics

Type                 SMA right angle male for cable

Impedance                  50Ω

Frequency Range        DC~12.4GHz(Semi-Rigid Cable DC-18GHz)

Center conductor retention force  ≥0.28 N

Insertion Loss           ≤0.15dB/6GHz

Voltage Standing Wave Ratio  Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤         1.07+0.018f

Right angle Flexible Cable     ≤1.20+0.03f           Semi-Rigid Cable≤1.17+0.02f

Durability(mating)           ≥500(cycles)

Cable                      RG402

Material & Plating

Body  Brass               Gold plated

Pin contact  Brass           Gold plated

Socket contact  Beryllium-copper Customized)  Gold plated

Resilient contact  Beryllium-copper  Gold plated

Insulator  PTFE

Crimp ferrule  Copper alloy    Nickel or gold plated

O-ring sealing                6146 silicone rubber

Price Terms︰EX-WORK
Payment Terms︰TT/WU/PAYPAL
Packing︰1000PCS/BOX
Lead Time︰5-7 DAYS AFTER PAYMENT
Product Image
