●Electrical Specifications:

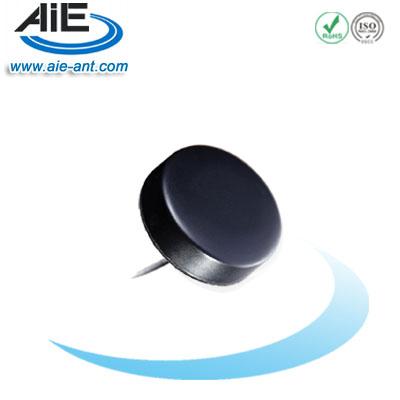

Model AIE-ANTGPS-C05
Center Frequency 1575.42MHZ
Band Width ±5 MHz
V.S.W.R 1.5:1
Polarization Type RHCP
Impedance 50 ohm
LNA Gain 28±2 dB Typical
Noise Figure 1.5dB
DC Voltage 2.2-5.0V
DC current 5-15mA
Housing Black
Mounting way Screw

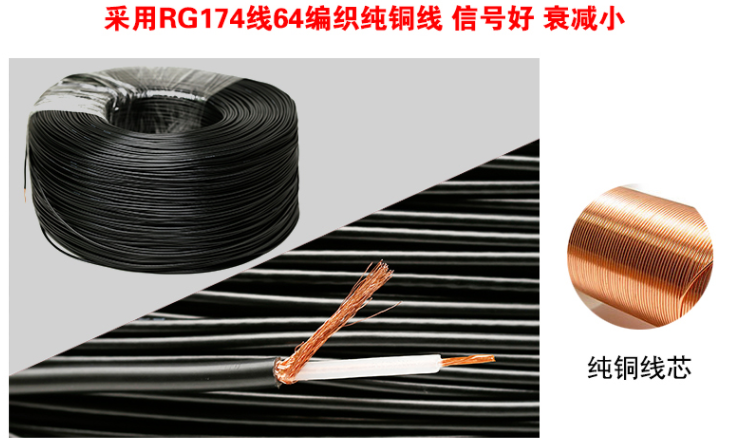

Cable RG174
Length 3 M
Connector SMA Male
Working Temp -40℃~+85℃
Humidity 55%-75%RH
Waterproof IP67
●Mechanical Specification
Size Φ47×14mm
Weight 60g
